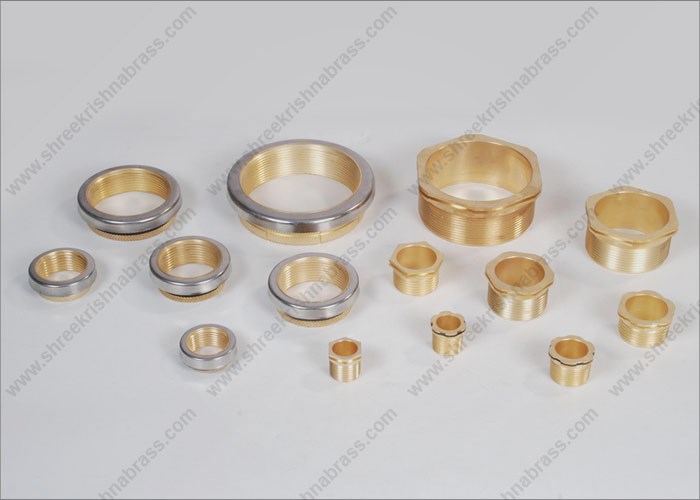

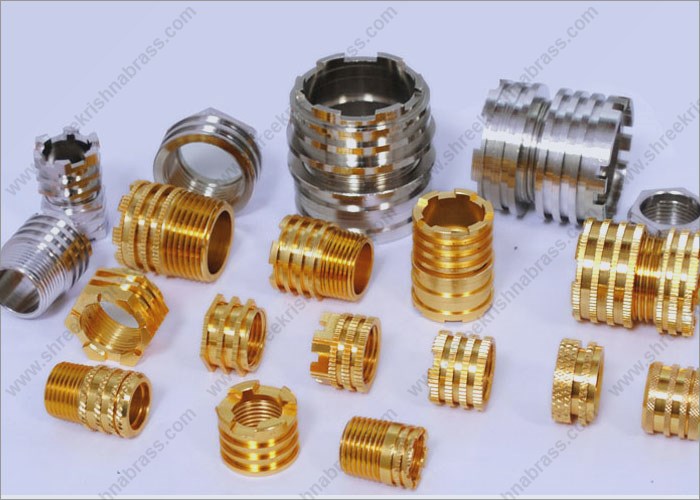

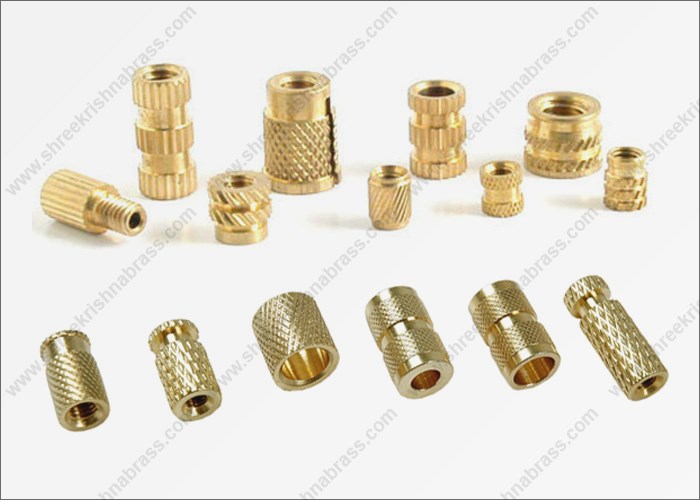

Brass Inserts

We are manufacturing the round knurled inserts, hexagonal inserts and square inserts as per custom design. The inserts are available with diamond, straight or unidirectional Knurling.


Special Features of Brass Inserts :  » Threads as per International Go & Not Go Standards.
» Deep Groove for maximum Pull Out Resistance.
» Inner Diameter (I/D) after Threads with very close tolerance to prevent unnecessary flush to enter into the brass inserts.
» Knurling Available: » Diamond » Straight » Unidirectional » Both blind and through brass inserts are available with no minimum Qty.

Also Available: Brass Round Knurled Inserts
Brass Hexagonal Inserts
Brass Square Inserts

Material : » Free Cutting Brass IS 319 Type (I) or BS 249 Type (I) or High Grade
» Any Special Brass Material Composition as per customers requirement

Threads : » ISO Metric (MM Threads)
» BA, BSW (Inches), UNC, UNF or
» Any as per custom design

Length / Size : Begins from M2 or equivalent threads and up to any size as per custom design or requirement

Finish And Coating : Natural, Nickle Plated, Tin Plated brass inserts or any coating as per customer specification.

Any kind of special brass inserts can be developed and supplied exactly as per customer specification
